Designed for performance and appearance, the Direct Vent air conditioning grille delivers flexible airflow control in a sleek, low-profile design. Ideal for both residential and commercial spaces, it allows air to be directed in up to four different directions – enhancing comfort and efficiency. With simple installation and easy maintenance, this grille is a reliable, stylish solution for any ducted air conditioning system.
These grilles are an ADA product and can be ordered online but will only be available for ‘pick up’ at the ADA branches in SA, QLD and NT. Paltech produces a similar grille which can be picked up from Paltech stores in Victoria. See Multi-Directional Outlets.

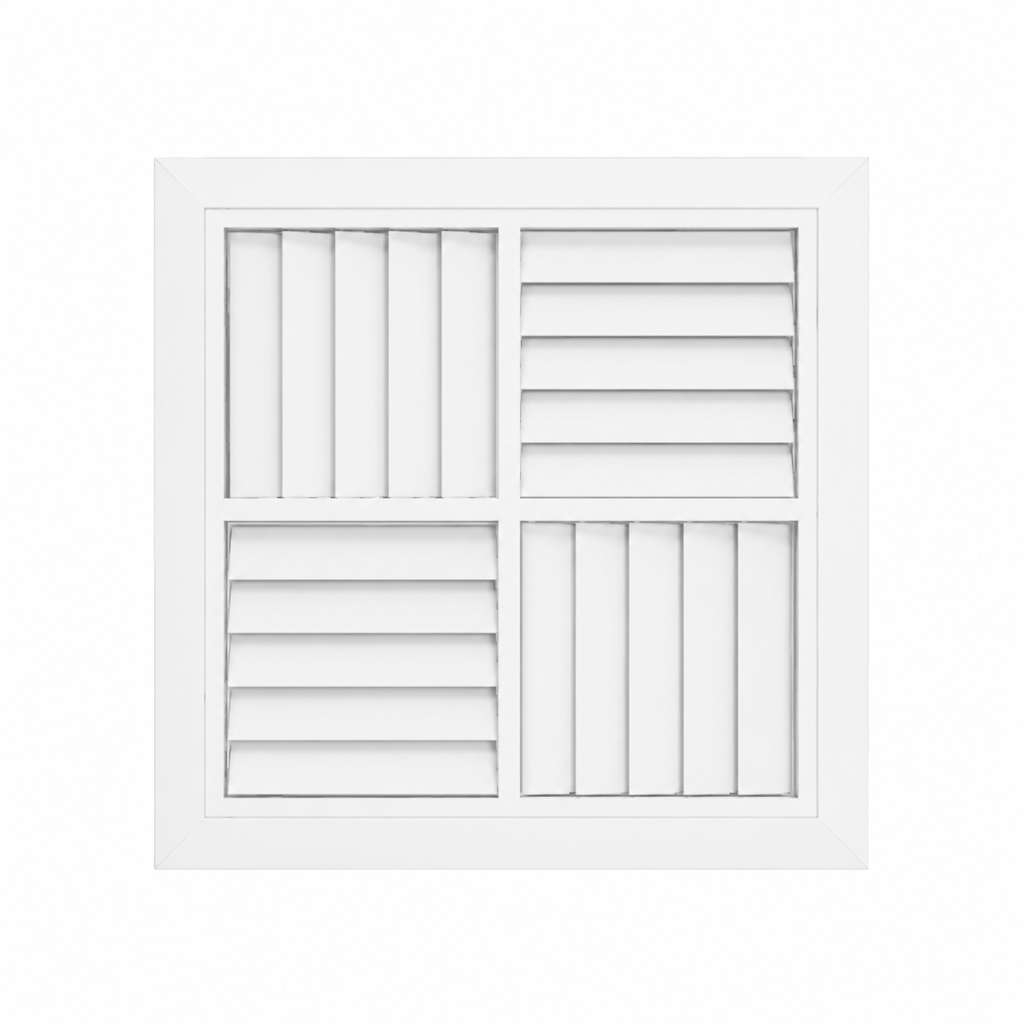

DV – Direct Vent Grille
Curved Blade Direct Vent.
Key Features
- Modern flush-mount design – Sits neatly against the ceiling for a clean, architectural finish.
- 4-way airflow control – Adjustable blades allow air to be directed where it’s needed most.
- Removable blades – Makes cleaning fast and hassle-free.
- Quick-fit installation – Fast action fixing speeds up installation.
- Available in 6 sizes – A range of options to suit different system requirements (see table below).
- Optional side entry neck adaptors – Perfect for installations in tight ceiling cavities or multi-storey buildings.
| Code | Nominal Neck Size (mm) | Exact Neck Size (mm) | Cut out Size (mm) | Face Size (mm) |
| DV2525 | 250 x 250 | 266 x 266 | 270 x 270 | 320 x 320 |
| DV3030 | 300 x 300 | 316 x 316 | 320 x 320 | 380 x 380 |
| DV3535 | 350 x 350 | 370 x 370 | 375 x 375 | 430 x 430 |
| DV4040 | 400 x 400 | 398 x 398 | 405 x 405 | 450 x 450 |
| DV4545 | 450 x 450 | 465 x 465 | 470 x 470 | 520 x 520 |
| DV5436 | 540 x 360 | 550 x 370 | 555 x 375 | 610 x 430 |
DVE – Direct Vent Egg Crate Grille
Egg Crate Direct Vent.
| Code | Nominal Neck Size (mm) | Exact Neck Size (mm) | Cut out Size (mm) | Face Size (mm) |
| DVE2525 | 250 x 250 | 266 x 266 | 270 x 270 | 320 x 320 |
| DVE3030 | 300 x 300 | 316 x 316 | 320 x 320 | 380 x 380 |

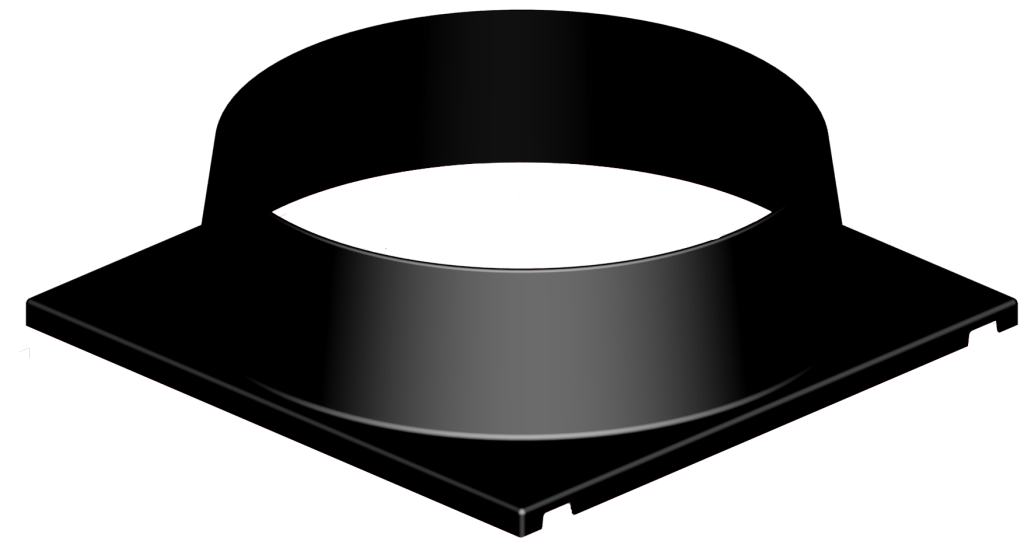

DVNA – Neck Adaptor
Used in standard roof applications.
DVNA Compatibility Table
Ideal for areas with restricted spaces or multi-story ceilings.
SENA Compatibility Table
