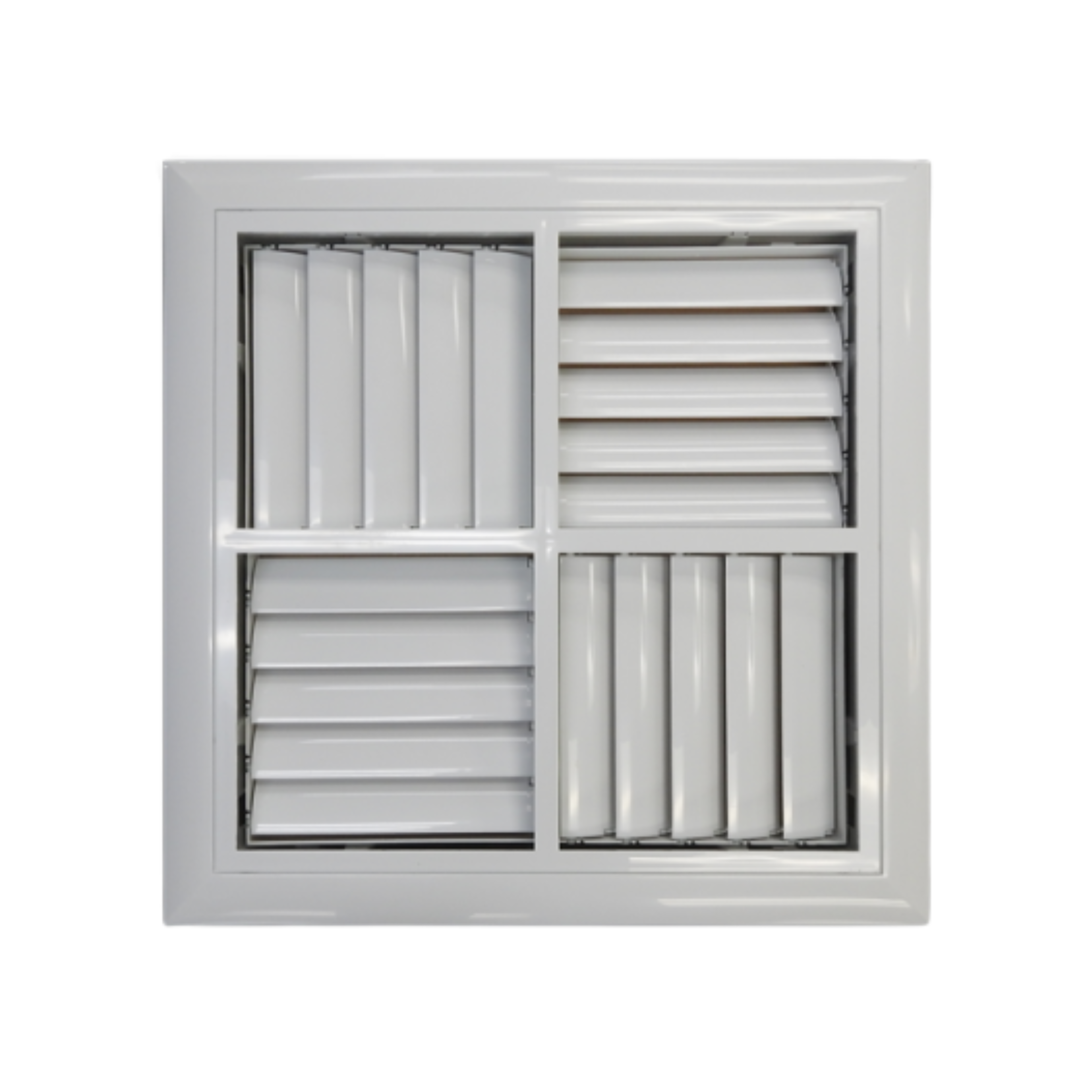

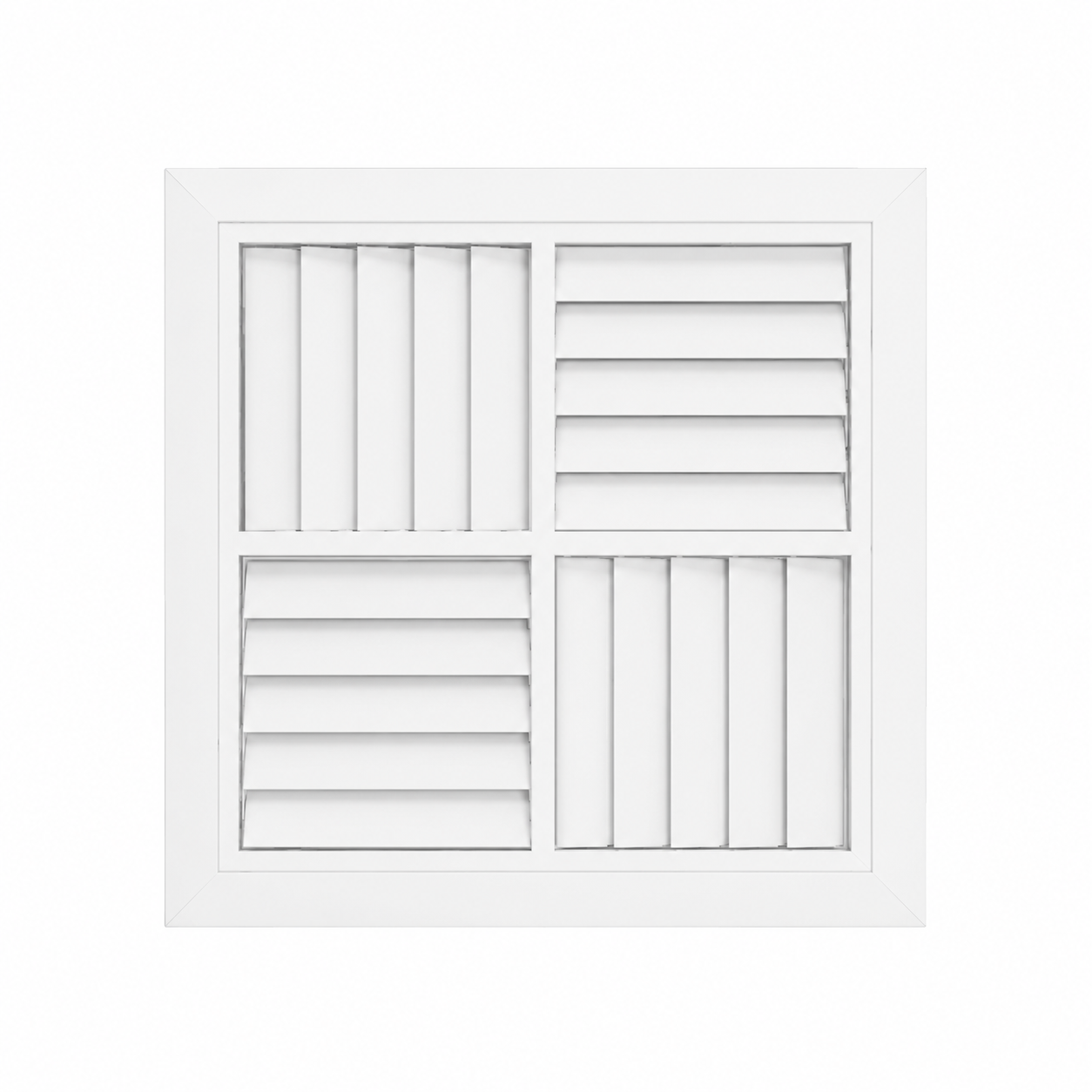

The Direct Vent air conditioning grille has adjustable blades that can be moved to direct air in 4 different directions.
Features
- Stylish modern appearance.
- Blades are removable for easy cleaning.
- Sits flush with the ceiling.
- Multi-directional blades direct air flow 4 ways.

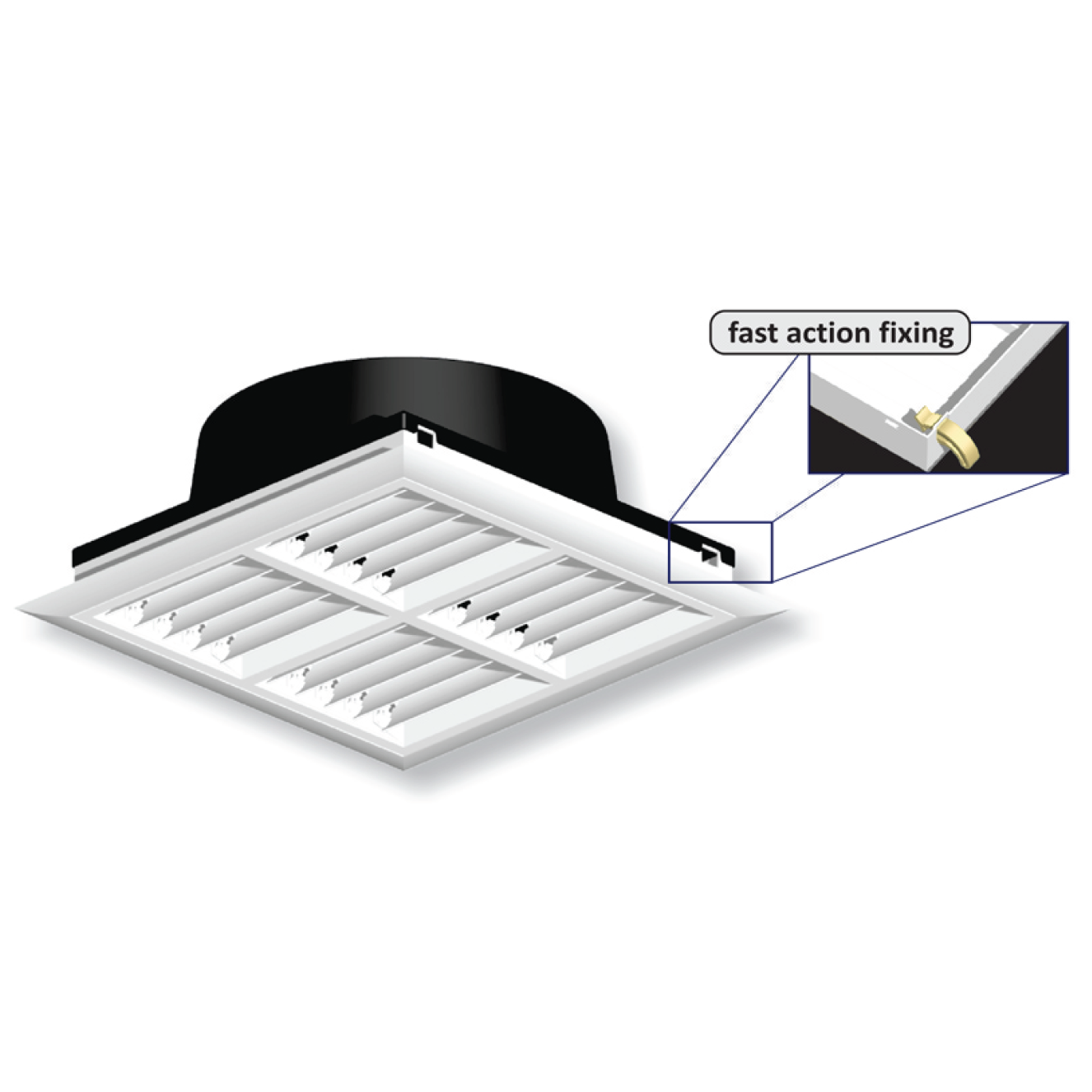

- Fast action fixing.
- Comes in 6 sizes (see table below).
| Code | Nominal Neck Size (mm) | Exact Neck Size (mm) | Cut out Size (mm) | Face Size (mm) |
|---|---|---|---|---|
| DV2525 | 250 x 250 | 266 x 266 | 270 x 270 | 320 x 320 |
| DV3030 | 300 x 300 | 316 x 316 | 320 x 320 | 380 x 380 |
| DV3535 | 350 x 350 | 370 x 370 | 375 x 375 | 430 x 430 |
| DV4040 | 400 x 400 | 398 x 398 | 405 x 405 | 450 x 450 |
| DV4545 | 450 x 450 | 465 x 465 | 470 x 470 | 520 x 520 |
| DV5436 | 540 x 360 | 550 x 370 | 555 x 375 | 610 x 430 |
Important
These grilles are made to suit the DVNA and SENA neck adaptors. Neck adaptors are NOT supplied with grille and must be ordered separately. See compatibility below.
DVNA – Neck Adaptor
Used in standard roof applications
| 150⌀ | 200⌀ | 250⌀ | 300⌀ | 350⌀ | 400⌀ | 450⌀ | 500⌀ | |
|---|---|---|---|---|---|---|---|---|
| DV2525 | DVNA2515 | DVNA2520 | ||||||
| DV3030 | DVNA3025 | DVNA3030 | ||||||
| DV3535 | DVNA3530 | DVNA3535 | DVNA3540 | |||||
| DV4040 | DVNA4030 | DVNA4035 | DVNA4040 | DVNA4045 | ||||
| DV4545 | DVNA4540 | DVNA4545 | DVNA4550 | |||||
| DV5436 | DVNA5445 | DVNA5450 |
SENA – Side Neck Adapter
Ideal for areas with restricted spaces or multi-story ceilings
| 150⌀ | 200⌀ | 250⌀ | 300⌀ | 350⌀ | 400⌀ | 450⌀ | 500⌀ | |
|---|---|---|---|---|---|---|---|---|
| DV3030 | SENA3025 | SENA3025 | ||||||
| DV3535 | SENA3530 |
For more details about this grille please contact your nearest ADA store before ordering.
Direct Vent Clips
New grilles come with a set of 4 clips to fix the grille to the neck adaptor. Clips can also be ordered separately.
