Designed and manufactured in Australia, the new Elevent range of low-profile ceiling diffusers maximises the performance of today’s high-efficiency heaters and reverse cycle air conditioners. The result is cosy winter comfort from a sleeker, smaller diffuser. This complements modern downlights and recessed light fittings. The cutting-edge design of the new Elevent range continues Paltech’s tradition as leaders of innovation in heating and cooling products.
Elevent Ceiling Diffusers are not currently available via our Online Shop. Please contact your nearest branch for pricing and availability.
Elevent Low-Profile Ceiling Diffusers
Elevent ceiling diffusers suit gas ducted heating, reverse cycle heating and cooling, air shifters, and ventilation systems. You can use them as a supply or return diffuser.
For gas ducted heating applications, installers can use multiple smaller outlets, such as the 100 mm model, instead of a single outlet. This approach helps provide improved distribution of warm air throughout the space. Moreover, multiple outlets provide the opportunity to strategically position the outlets to maximise heating effectiveness. For example, pace them near the two corners of a bedroom opposite the door.
Elevent maximises airflow while reducing space requirements. Its low-profile design provides an efficient and compact solution. Therefore, this gives it an elegant appearance that harmonises with down lights, recessed light fittings and other ceiling fittings.
The adaptor has optional butterfly dampers for system balancing on the 150 and 200m sizes. In addition, the diffuser can be replaced with a blanking cap on the 100 mm model when shut-off is required. The Louvred and Curved models feature adjustable airflow direction. Homeowners can easily adjust the air flow to provide draught-free airflow within the living space. Furthermore, Elevent is the first ceiling diffuser that homeowners can remove without tools. This makes cleaning or re-painting a ceiling quick and easy.

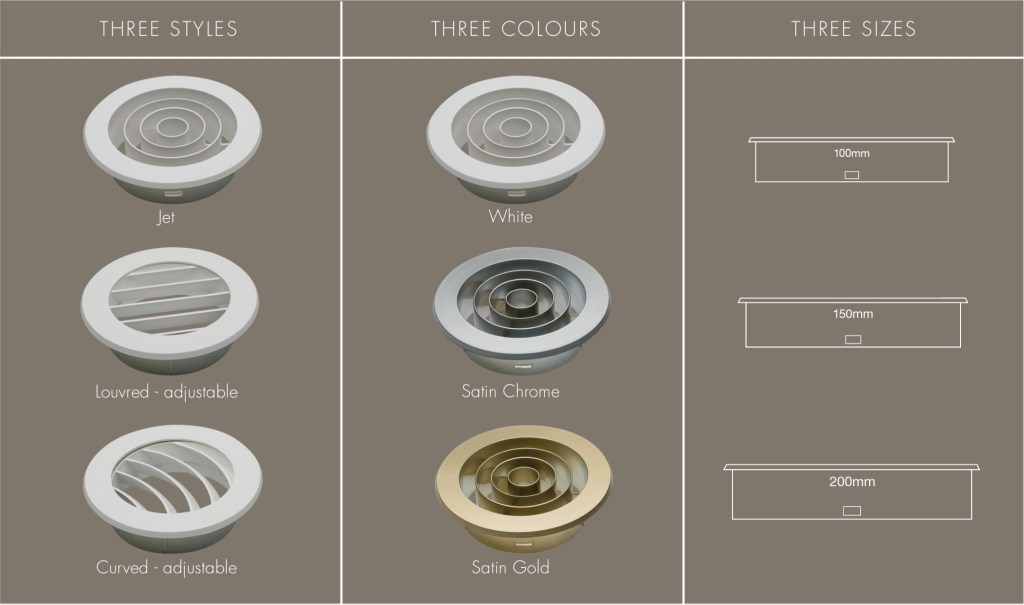

Available in Three Colours and Styles.
Elevent Swirl
The advanced Elevent Swirl ceiling diffuser ensures the highest possible efficiency from your heating or cooling system. Its system of rotational jets encourages optimum mixing of the ambient room air with the heated or cooled air from the diffuser. Winter or summer, you enjoy uniform temperature throughout your living spaces along with greatly reduced draughts. Traditional cone-type ceiling diffusers produce cool air that descends slowly into your room. In summer this leads to cold air spots and localised stagnation of air if the system isn’t operating at optimum performance. During winter, warm air from cone-type diffusers tends to stay at the ceiling and doesn’t effectively penetrate the living spaces. Square diffusers are usually better at directing warm air downwards during winter. However, in summer they can contribute to cool draughts and they don’t mix as thoroughly as the Swirl.
The Elevent Swirl encourages optimum mixing of heated or cooled air with room air by producing a number of rotational jets at a downward angle away from the ceiling. Furthermore, the turbulent cooled or warmed air draws in and captures the room air, spreading it throughout your living spaces.
Elevent Swirl is suitable for refrigerated cooling, reverse cycle heating and gas ducted heating at ceiling heights from 2.4 to 4 metres. The Swirl diffuser has been optimised for refrigerated cooling and reverse cycle heating in which the supply air is +/- 20 degrees of room temperature and the supply fan runs continuously. It has been designed to maximise the most important aspect of the diffuser – the airflow – and reduce the space requirements of the installation and mounting mechanisms. These mechanisms can contribute to an obtrusive appearance in other outlets. The result is a small, low-profile design with an elegant appearance. This harmonises with down lights, recessed light fittings and other ceiling fittings.
Elevent is the first ceiling diffuser that can be easily removed by the householder by hand, without tools to enable cleaning or when repainting a ceiling.
The Elevent Swirl is available in Three Styles.
