Intended to be used in combination with, but not limited to: TEK7EC (700 Series), TEK600 series (including TEK632) and TEK400 Series Control Boxes.

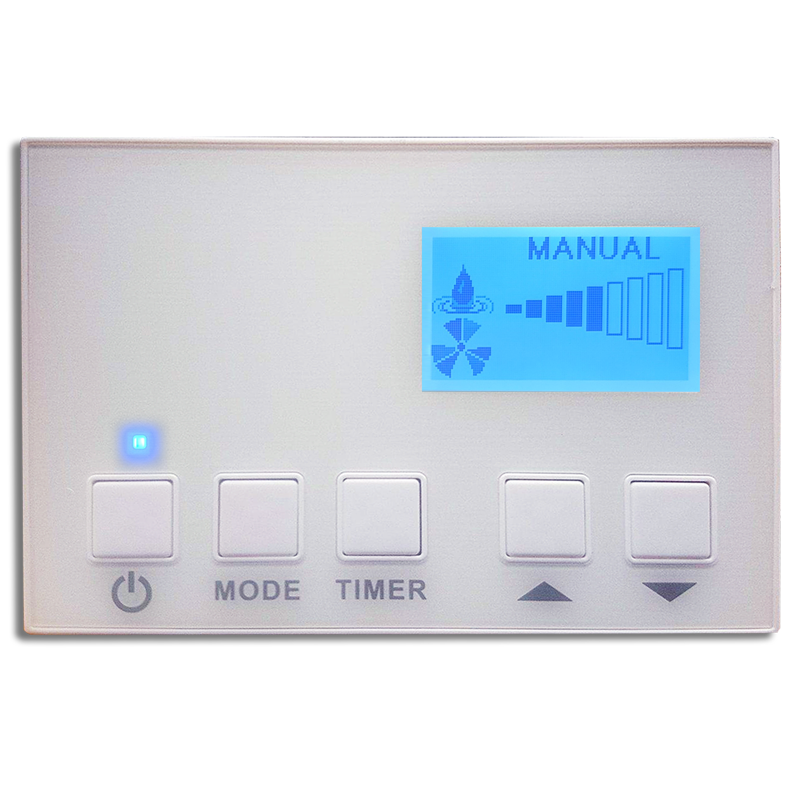

The new TEK7DAT is a simple and complete digital replacement for the TEK425, TEK485 & TEK7DT.
You do not need new wiring. It uses the same 5 pin loom that is already plugged into the back of your current TEK425 & TEK485 wall control
The TEK7DAT can also be used to replace TEK285 with TEK7EC Control box and TEK400WL loom.
Features
- Full graphic display
- Room temperature measurement, and optional display, on LCD
- Set level adjustment by use of “Up” and “Down” buttons
- Timer function providing delayed on/off operation
- Auto Cooling, Manual Cooling, and Fan operation
- Pre-wet control built-in
- Blue LED above on/off button to show operational even in standby.
- Analogue outputs to set cooler operating mode.
Please note some of the features may not be available with older series control boxes.
Please note: For warranty claims you must provide your receipt proving that a qualified electrician person installed this item.
