THIS PART HAS BEEN DISCONTINUED. IT CAN BE REPLACED WITH A TEK7DAT

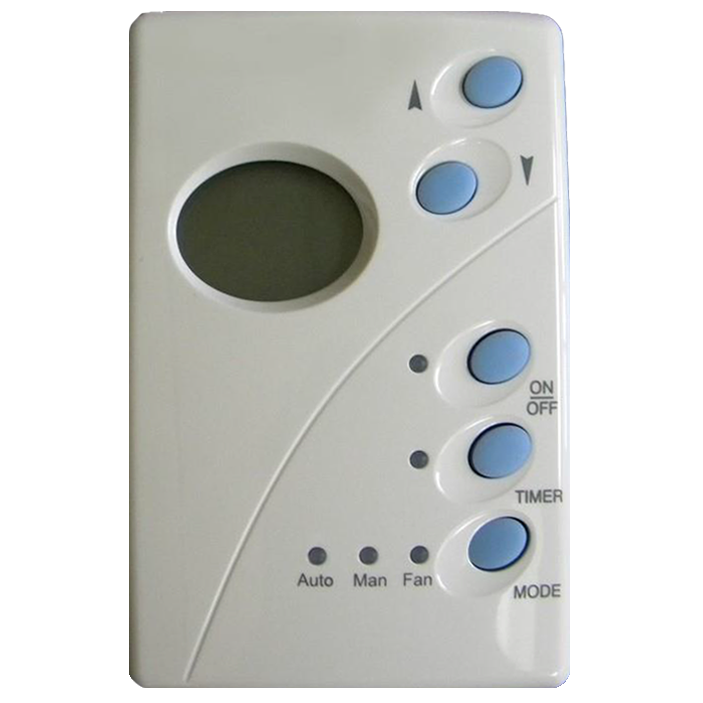

A Digital BUS Interface wall control to use in combination with the TEK632 or TEK7EC cooler Control. Uses a 4-way header for connection to the TEK698 communications loom.
Features:
- Used with TEK632 TEK7EC via TEK698 loom
- Room temperature measurement, and display, on LCD. (absolute accuracy is ± 1°C)
- Set temperature adjustment by use of “Up” and “Down” buttons
- Timer function providing delayed on/off operation
- Auto Cooling, Manual Cooling, and Fan operation
- Pre-wet, pre-fill, and Dump control built-in
- Operation of pump only for use in high fire risk areas.
- Size is designed to be compatible with a standard wall plate.
- Blue backlight activates when TEK616 is on
Power Supply:
- The TEK616 requires a nominal 5V supply at 45mA
Temperature and Humidity Requirements:
- Nominal operational ambient 0-40°C.
- Storage Ambient 0-60°C.
- 10-95% RH, non condensing
