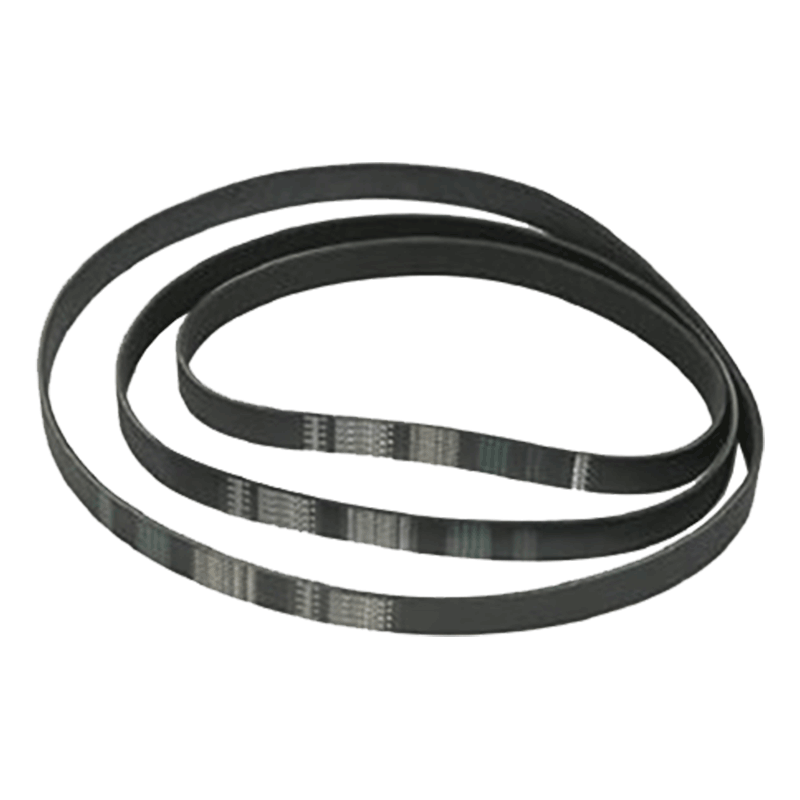

V Belts are an essential drive system component that connects the motor pulley to the blower pulley in centrifugal evaporative units.
V Belt Types:
- A Section Belt: Measure 13mm (1/2″) in width and 8mm (5/16”) in height
- B Section Belt: Measure 17mm (5/8″) in width and 11mm (3/8”) in height
The length of the v-belt is indicated by the number after the code, generally marked on the outside of the belt (ie. The A40 v-belt is 40 inches in length). To accurately measure the length of your V Belt use a flexible measuring tape (not a steel one) and wrap it around the outside of the belt. If a flexible measuring tape is unavailable, use a thin string to take the measurement, then place the string on a steel tape measure to determine the correct length.
A40,A41,A42,A43,A44,A45,A46,A47,A48,A49,A50,A52,A53,A54,A56,A58,A59,A60,A61,A62,A63,A64,A65,A66,A67,A68,A69,A70,A71,A72,A73,A74,A75,A76,A77,A78,A79,A80,A81,A82.A83,A84,A85,A86,A87,A88,A89,A90,A91,A92,A93,A94,A95,A96,A97,A98,A100,A102,A103,A105,A108,A110,A112,A115
