MFP Circular Inline Duct Fans are high-performance ventilation solutions featuring a mixed flow impeller, designed to deliver strong airflow with high pressure and low noise levels. These fans are ideal for a wide range of residential and commercial applications, including bathrooms, kitchens, apartments, shops, and cafes.
Built for versatility and ease of installation, MFP inline fans can be mounted at any angle and are suitable for both supply and exhaust applications. Their compact design makes them perfect for installations in tight spaces while still providing efficient and reliable performance.
Key Features
- Versatile
MFP can be mounted at any angle using the included mounting plate. - Fast and Easy Maintenance
The case unclips from the duct connections for quick and convenient access. - Excellent Motor Life
Ball bearings extend the motor life up to 40,000 hours of continuous use. - Multiple Fan Configurations
Fans can be mounted in parallel to increase airflow or in series to increase pressure.

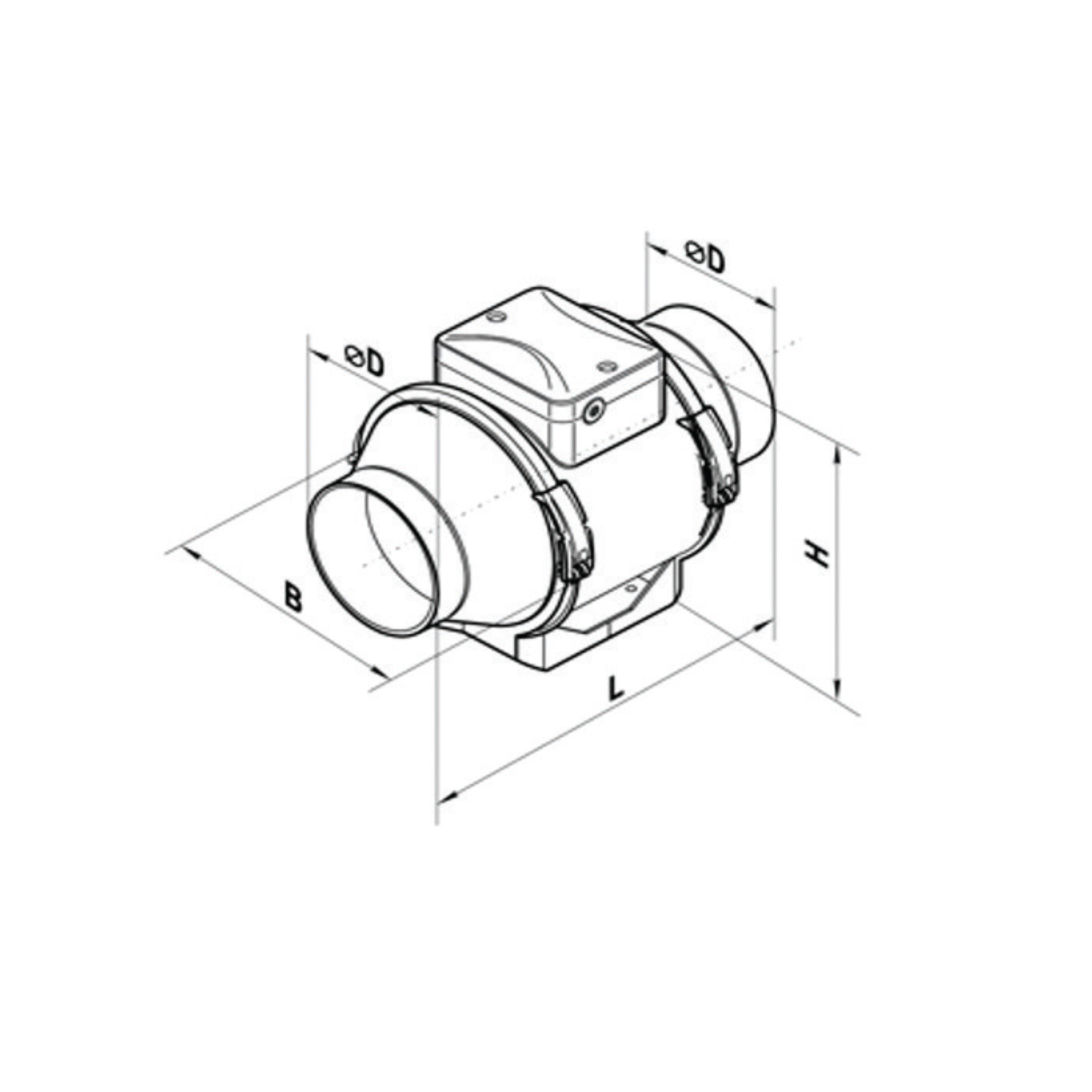

Dimensions
| Type | D | B | H | L |
|---|---|---|---|---|
| MFP150V | 148 | 220 | 247 | 289 |
| MFP200V | 199 | 239 | 261 | 295.5 |
| MFP250V | 247 | 287 | 323 | 383 |
Airflow
| Fan Model | Max Airflow (m³/s) | Max Airflow (L/s) |
|---|---|---|
| MFP 150 High | 0.18 | 180 L/s |
| MFP 150 Low | 0.15 | 150 L/s |
| MFP 200 High | 0.3 | 300 L/s |
| MFP 200 Low | 0.24 | 240 L/s |
| MFP 250 High | 0.42 | 420 L/s |
| MFP 250 Low | 0.28 | 280 L/s |
