Door grilles are a vision proof method of transfering air in partition applications.
APPLICATIONS:
- Door grilles are a vision proof method of transfering air in partition applications.

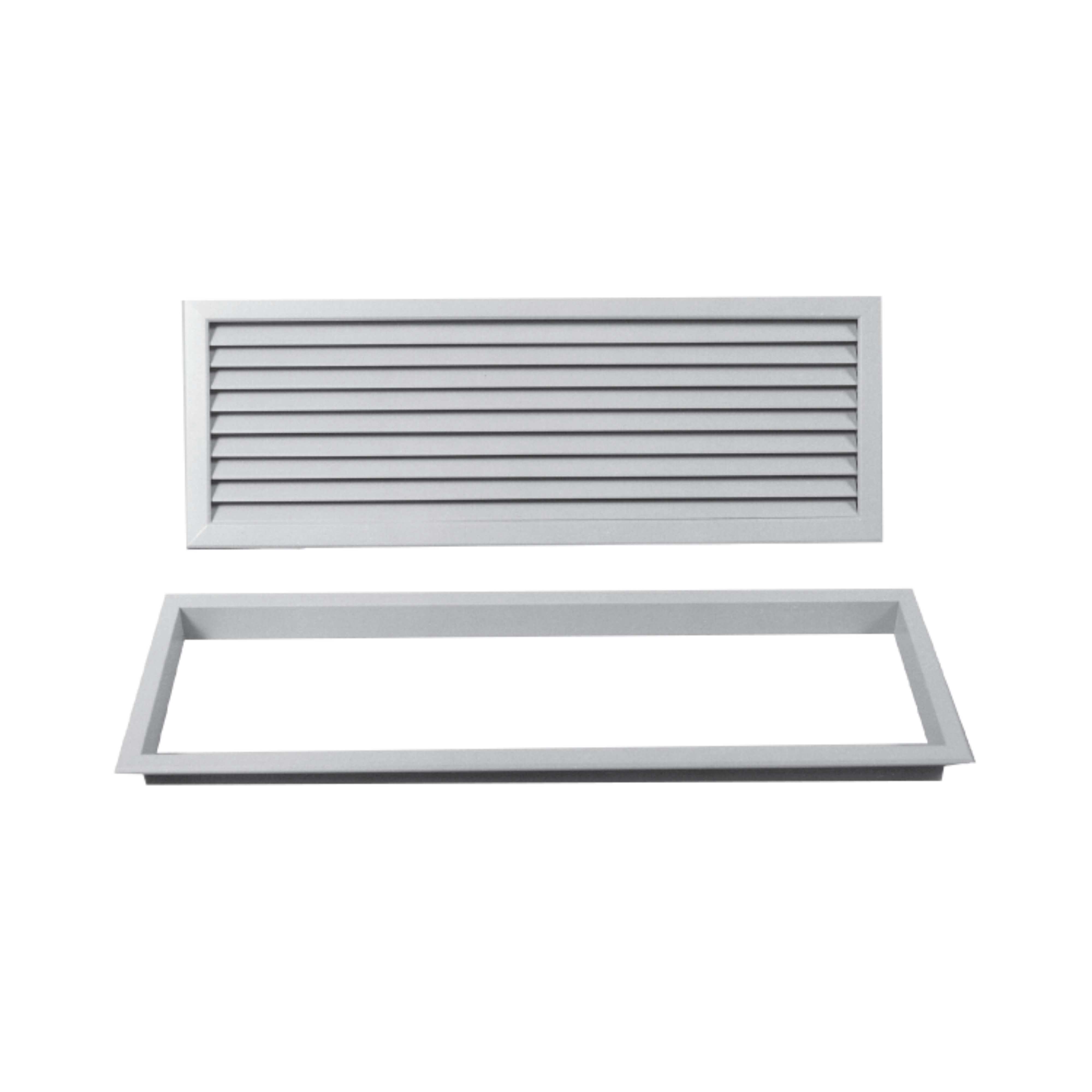

- The telescopic frame requires no extra fixing, the two frames simply click together enabling equal appearance from both sides.
- The telescopic frame suits doors or partitions from 29mm to 48mm wide..
FEATURES:
- An inverted “v” blade for vision proof appearance.
- Chevron type blades spaced at 20mm centres for maximum free area consistent with non-vision construction.
- Approximately 50% free area.
- Clips located on the inner frame snap fit the outer frame, eliminating the need for rivets or screws.
- Standard finish natural anodised.
All sizes listed are nominal neck (-5) unless stated otherwise. Other sizes avaliable. For pricing please contact your local ADA or Paltech store.
| ADA CODE | SIZE |
|---|---|
| DG3016 | 300 x 160 |
| DG4020 | 400 x 200 |
| DG6010 | 600 x 100 |
| DG6016 | 600 x 160 |
| DG6020 | 600 x 200 |
| DG6026 | 600 x 260 |
| DG6030 | 600 x 300 |
| DG6036 | 600 x 360 |
| DG6040 | 600 x 400 |
| DG6046 | 600 x 460 |
| DG6050 | 600 x 500 |
| DG6060 | 600 x 600 |
