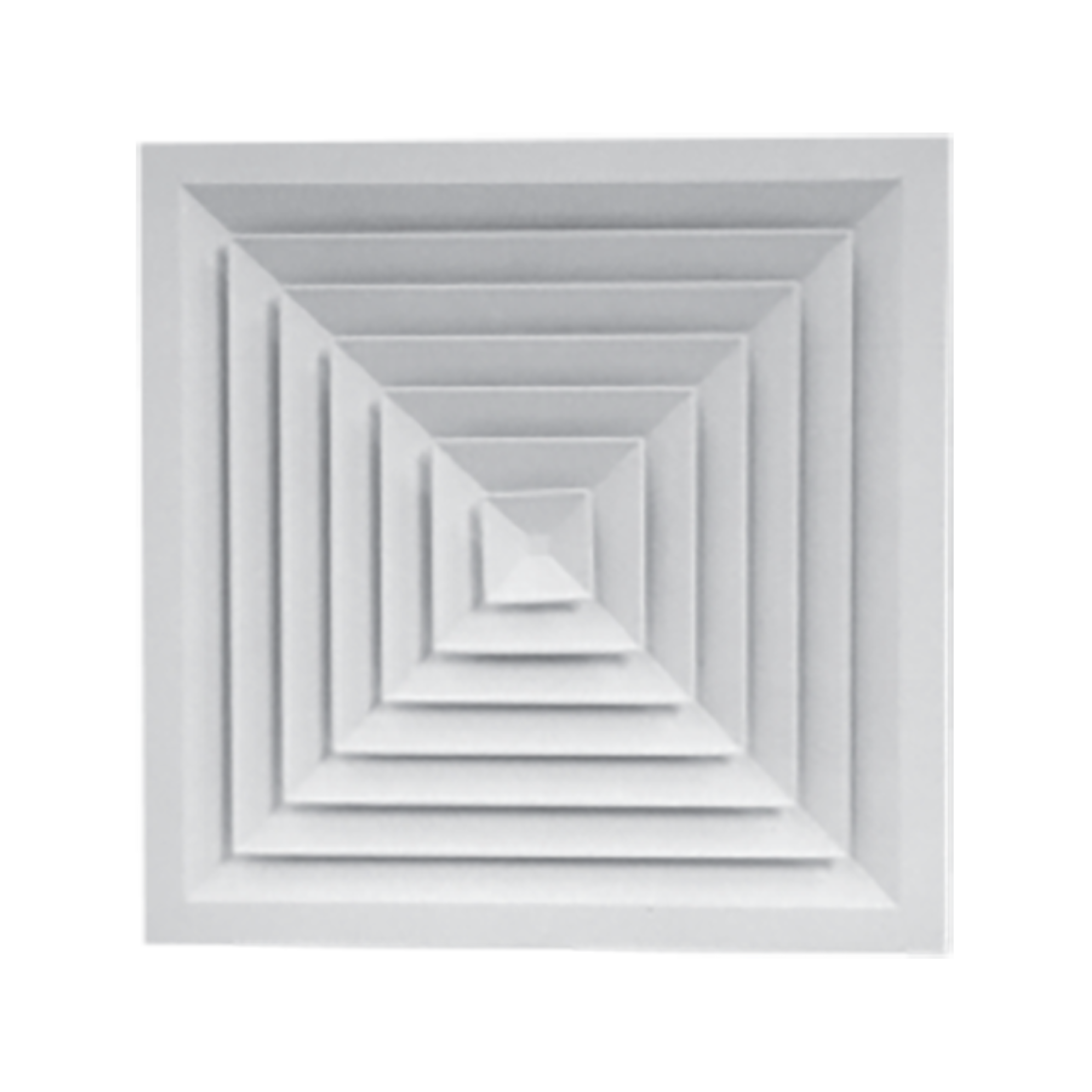

Louvre faced ceiling diffusers are the industry standard supply air grille.
APPLICATIONS:
- Designed to deliver large volumes of air in a stable horizontal air pattern that is close to the ceiling, and draft-free.
- In lay-in applications, the diffuser is placed into a T-bar ceiling grid without any need to alter the T-bar construction; it simply replaces a tile.
- This extremely versatile frame style is also suitable for surface mounting.
FEATURES:
- Manufactured from aluminium extrusion that is lightweight and resistant to rust and corrosion.
- The removable core makes them easy to install, clean & access dampers located behind diffusers.
- Triangular blanking plates can be fitted behind the louvre to obtain a varying distribution pattern whilst maintaining a uniform face appearance.
- Standard finish powder coat satin white
All sizes listed are nominal neck (-5) unless stated otherwise. Other sizes avaliable. For pricing please contact your local ADA or Paltech store.
| ADA CODE | NOMINAL NECK SIZE | FACE SIZE |
|---|---|---|
| CD1530 | 150 | 300 |
| CD2237 | 225 | 375 |
| CD3045 | 300 | 450 |
| CD3752 | 375 | 525 |
| CD4560S | 450 | 600 |
| CDI4560 | 455 | 605 |
