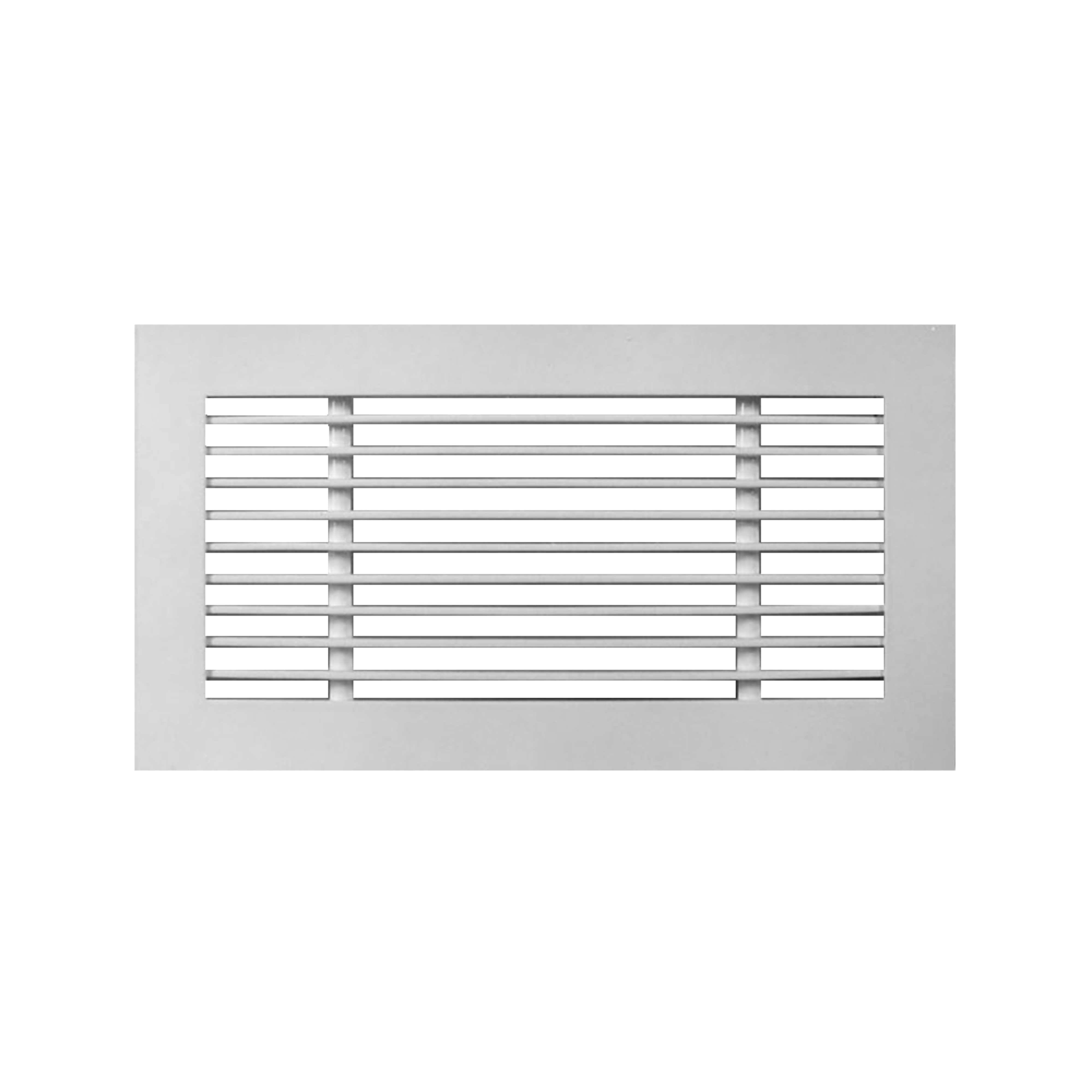

Bar grilles are an all purpose grille suitable for supply, return and exhaust air applications in heating, cooling and ventilation systems.
APPLICATIONS:
- A versatile grille that can be easily fitted in walls, bulkheads, kickboards, floors and ceilings.
- A popular choice for continuous line applications.
FEATURES:
- Constructed of lightweight aluminium extrusion resistant to rust and corrosion.
- Sections can be butted together for continuous installation, joining pieces supplied.
- Optional adjustable vertical back blades can be fitted to rear.
- Blade profile 25 x 3mm aluminium flat bar at 18mm centres.
- Standard finish powder coat satin white.
| ADA CODE | SIZE |
|---|---|
| BGRC4010 | 400 x 100 |
| BGRC4015 | 400 x 150 |
| BGRC5515 | 550 x 150 |
| BGRC6010 | 600 x 100 |
| BGRC6015 | 600 x 150 |
| BGRC8015 | 800 x 150 |
| BGRC1015 | 1000 x 150 |
| BGRC1020 | 1000 x 200 |
| BGRC1115 | 1150 x 150 |
| BGRC11520 | 1150 x 200 |
| BGRC1215 | 1200 x 150 |
| BGRC14515 | 1450 x 150 |
| BGRC14520 | 1450 x 200 |
| BGRC17520 | 1750 x 200 |
All sizes listed are nominal neck (-5) unless stated otherwise. Other sizes avaliable. For pricing please contact your local ADA or Paltech store.
