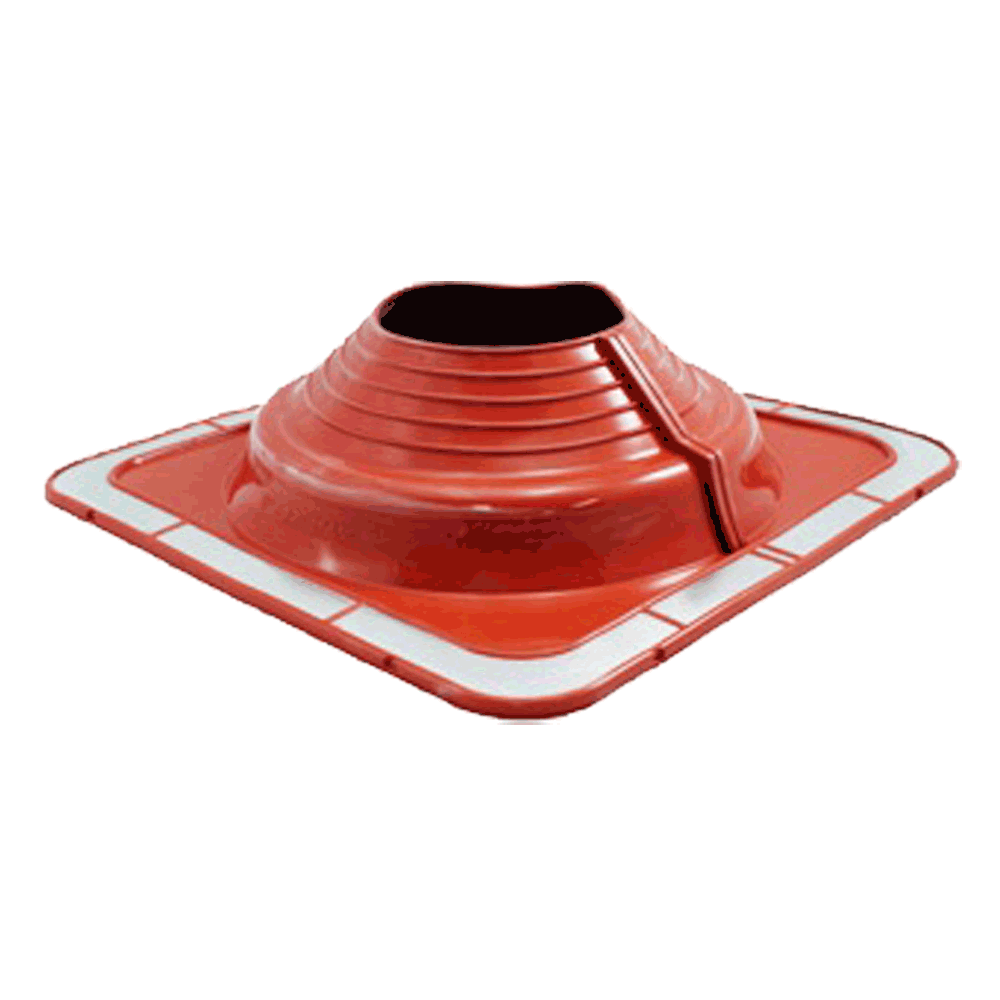

Aquaseal FlashRite Roof Pipe Flashings are expertly engineered to create a watertight seal around pipe penetrations on metal roofs, making it perfect for both new installations and repairs.
Features:
- Colour: Red
- Material: Silicone
- Temperature range: -50°C (-58°F) to 200°C (392°F).
Benefits:
- Wraps around existing pipes
- Suitable for repairs
- Full range of sizes
- Polymer is Ozone and UV resistant
- 25 year warranty
- EPDM Black BAL Rating 12.5
| Code | Description | Base Size | Pipe Size (25° roof pitch) | Pipe Size (45° roof pitch) | Max retrofit clips required |
| A4R | FlashRite No. 4 | 260x260mm | 90-150mm (3½”-6″) | 90-130mm (3½”-5″) | 5 |
| A5R | FlashRite No. 5 | 313x313mm | 125-200mm (5″-8″) | 125-165mm (5″-6½”) | 5 |
| A6R | FlashRite No. 6 | 370x370mm | 150-250mm (6″-10″) | 150-230mm (6″-9″) | 6 |
| A7R | FlashRite No. 7 | 440x440mm | 195-300mm (8″-11⅚”) | 195-255mm (8″-10″) | 7 |
| A8R | Aquadapt No. 8 | 540x600mm | 230-380mm (9″-15″) | 230-355mm (9″-14″) | 9 |
