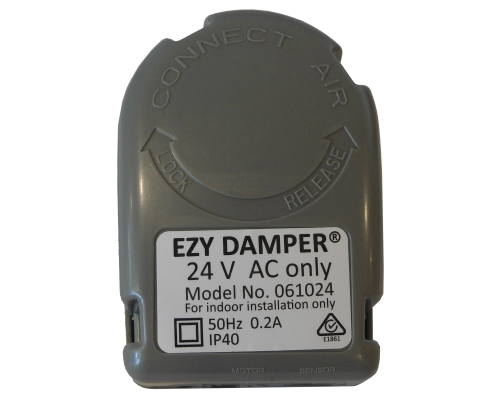

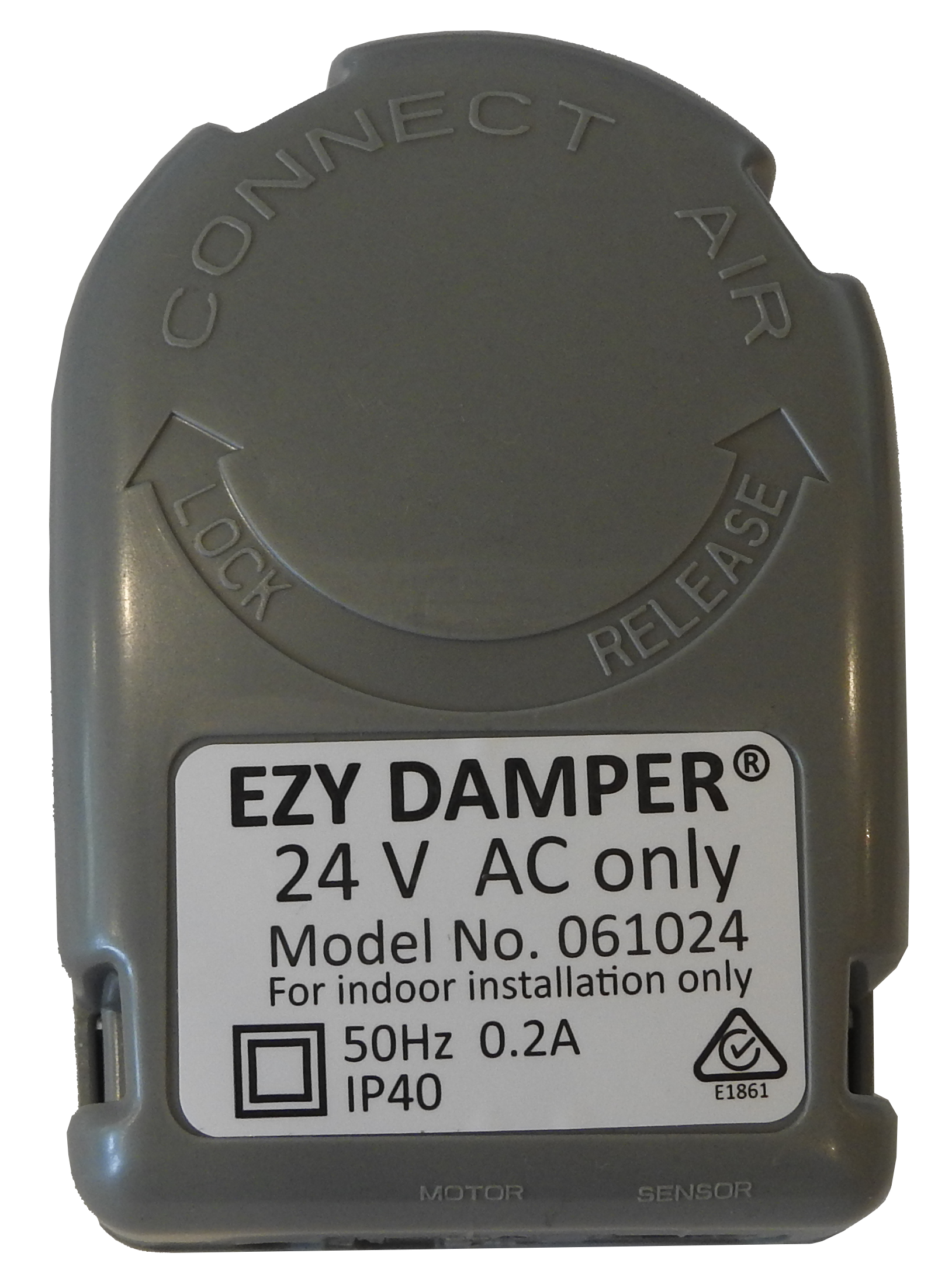

240v EZY DAMPER® ZONE MOTOR (GREY)
Also known as the Fast Fit Zone Damper Motor (Model 0610024).
Comes in kit form which is a replacement for the Connect Aire CA71 24v. See EZM24K
SPECIFICATIONS FOR SYNCHRONOUS MOTOR
| AC Voltage | 24 Volt |
| Insulating Resistance | >100 mW |
| Dielectric Strength | AC360 |
| Speed | 1.6 / 1.9 RPM |
| No Load Current | < 150mA |
| Power Consumption | <4 Watt |
| Output Torque | >8 Kgf.cm |
| Starting Voltage | 20.4 V |
| Noise | < 40db |
| Temperature Rise | < 75 k |
| Rotation | CCW |
