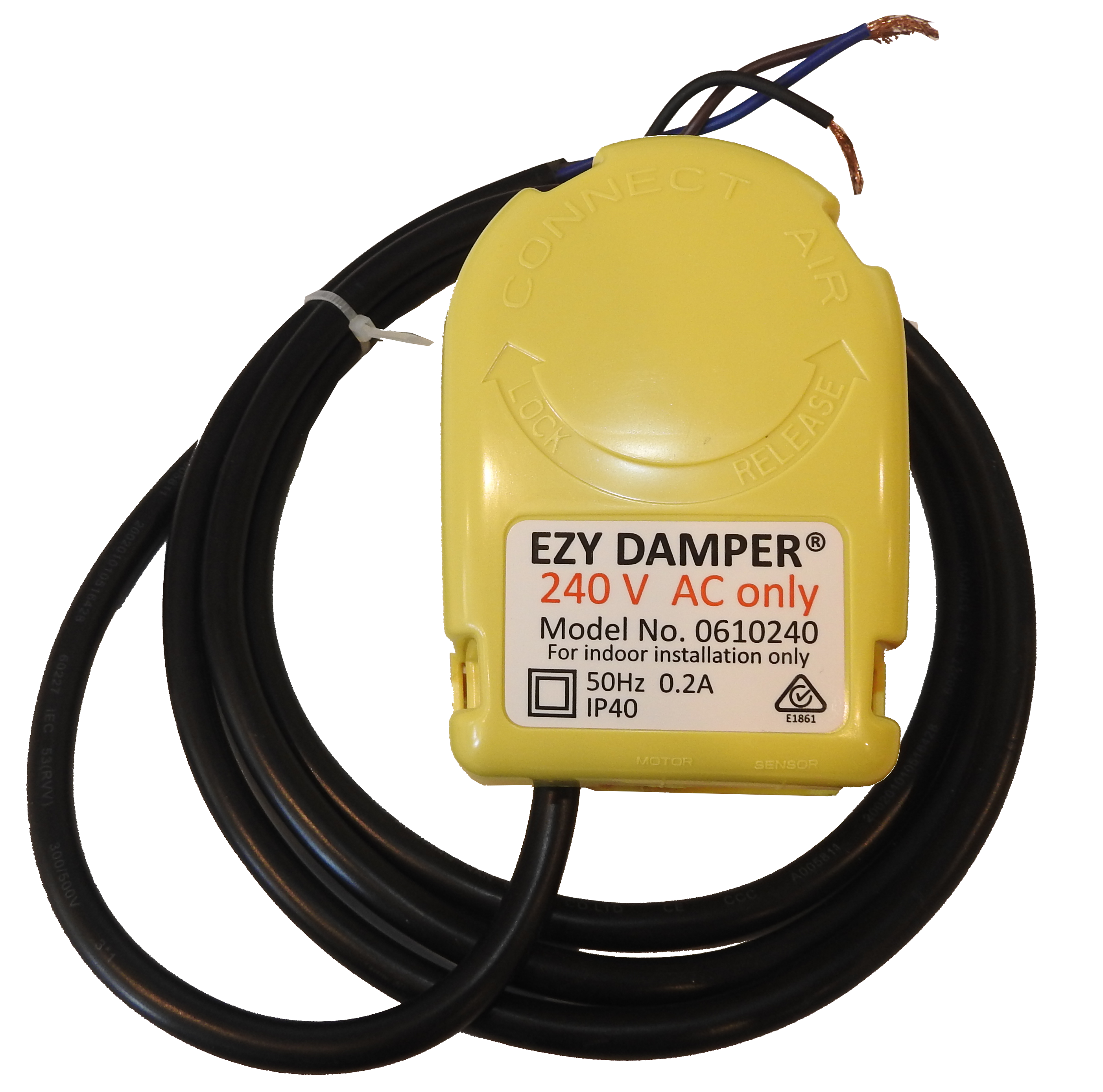

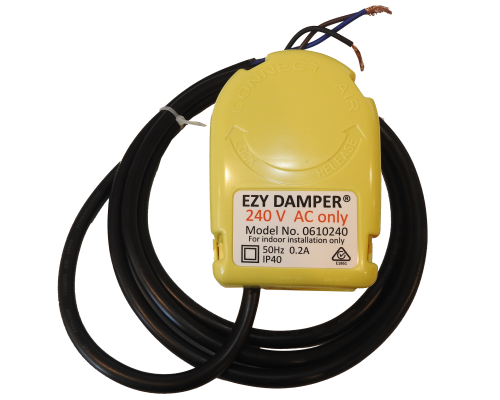

240v EZY DAMPER® ZONE MOTOR (YELLOW)
Also known as the Fast Fit Zone Damper Motor.
Comes in kit form which is a replacment for the Connect Aire CA71 240v. See EZM240K
SPECIFICATIONS FOR SYNCHRONOUS MOTOR
AC Voltage | 240 Volt |
Insulating Resistance | >100mW |
Dielectric Strength | AC1800 |
Speed | 1.6 / 1.9 RPM |
No Load Current | < 20mA |
Power Consumption | <4 Watt |
Output Torque | >8 Kgf.cm |
Starting Voltage | 204 V |
Noise | < 40db |
Temperature Rise | < 75 k |
Rotation | CCW |
